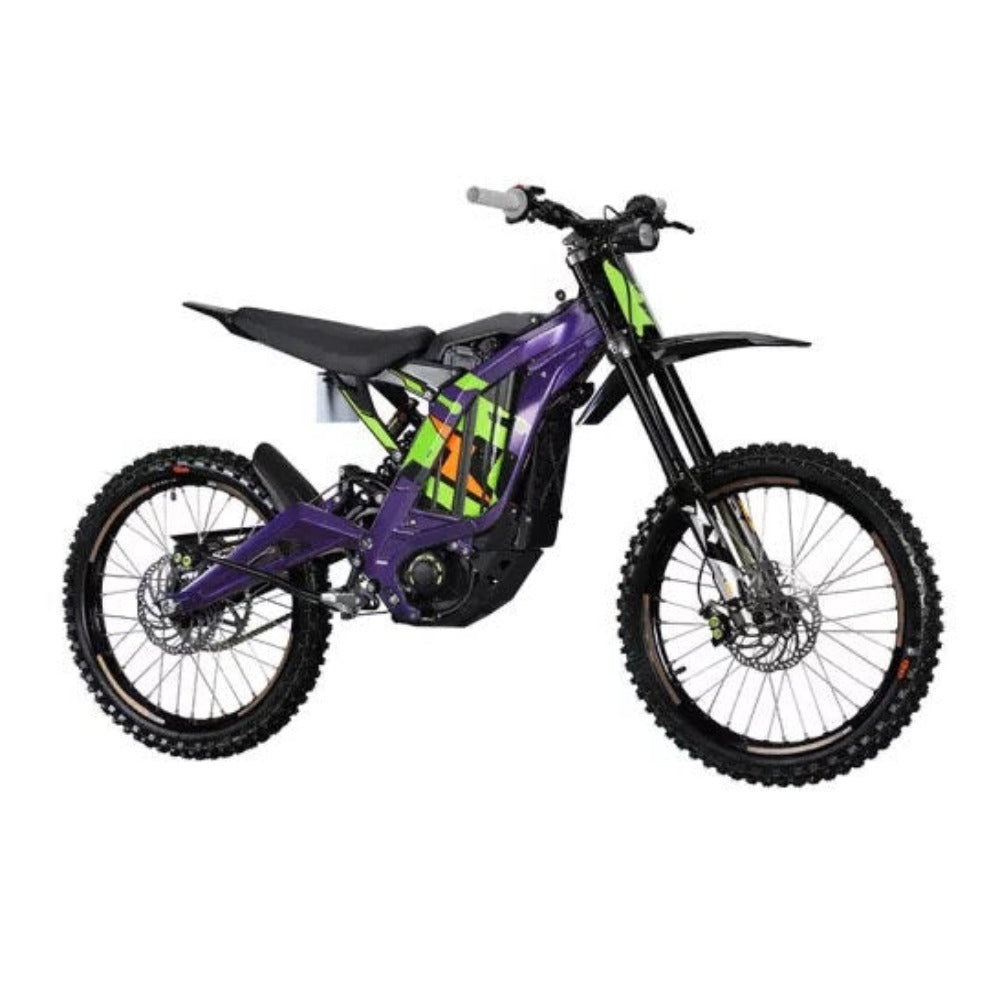

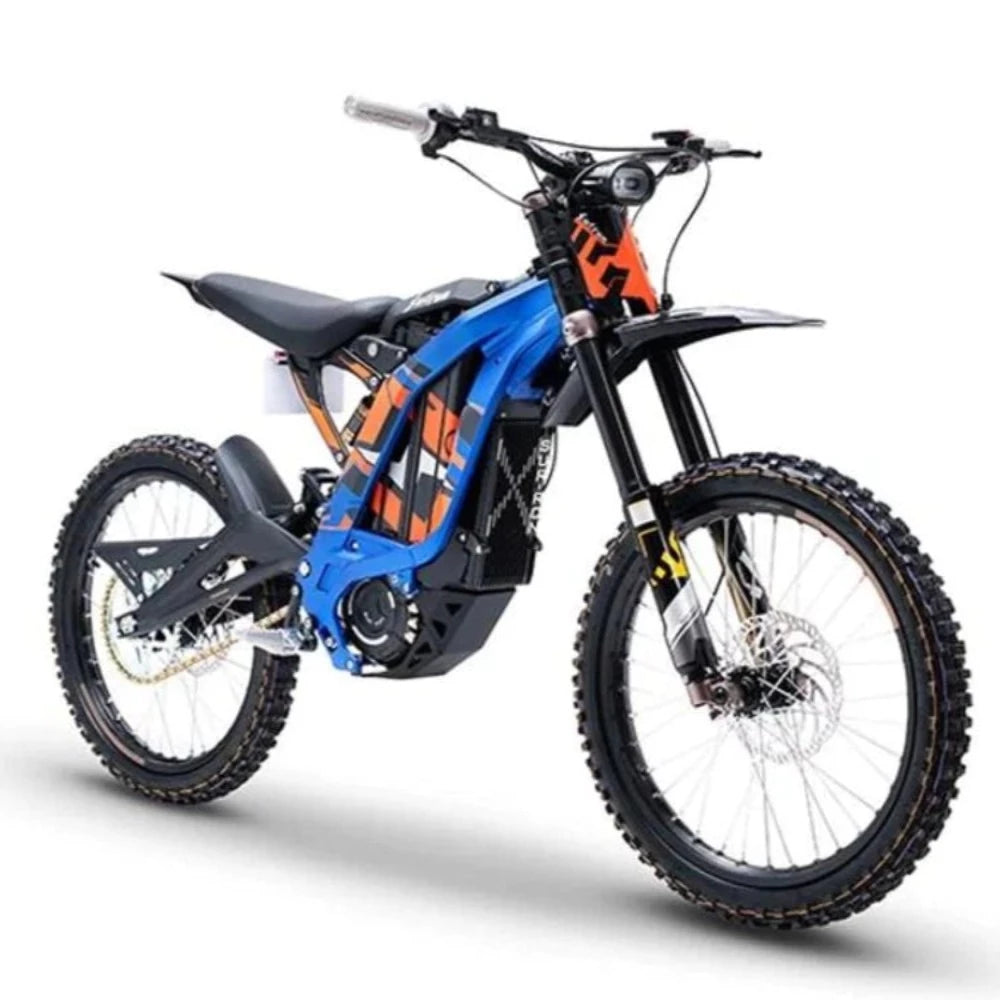

The Electric powered SUR-RON LB X Series Dual Sport E Dirt Bike promises advanced fun on all terrain.
60V 40AH battery and more than 6kW of peak power from a removable Samsung 35e battery pack. Forged light weight alloy frame combined with hi-spec components, total weight just 47kg.
4 Piston Hydraulic Disc Brakes Front and Rear.
LCD dash with USB charger point.
Climbing ability of over 45° it offers hours of near silent fun with a range of 20 to 60 miles per charge, depending on mode and Fast Re Charge 2.5 to 3.5 hours.
Full UK technical, spares and marketing support.
All colours of the LB X-Series Dirt Bike come complete with a front fender.
New updates on the X Series Off-Road Version for 2020 Models Onwards:
- Sine wave controller delivers smoother power with more torque with ReGen for improved range.
- DNM, KKE Fastace Suspension
- Improved riding position: wider thicker seat combined with wider higher bars.
- Heavier duty Gold O Ring chain for lower maintenance & reduced noise.
- Updated brakes: 4 pot titanium finish callipers now with sintered pads with improved heat dissipation and braking power.
- Pro handlebar grips in grey.
Tested and certified protection against dirt, dust and wet weather use under normal riding conditions.
SPECIFICATION
| MOTOR | |
| Motor Type: | PMSM |
| Mounting Position: | Mid |
| Weight / Motor External Diameter: | 7.0kg / 180mm |
| Motor Axial Length: | 130mm |
| Peak Efficiency: | 95.60% |
| Cooling Method: | Air-Cooled |
| CONTROLLER | |
| Controller Type: | X Version Sine Wave |
| Dimensions: | 240mm x 110mm x 50mm |
| Peak Efficiency: | 98.50% |
| Power Modes: | Eco and Sport |
| MOTOR POWER SYSTEM | |
| Rated Voltage: | 60V (DC) |
| Rated Power / Peak Power: | 3000W / 6000W |
| Rated Torque / Peak Torque: | 10.2Nm / 39.00Nm |
| Motor Shaft Output Torque @ 1000RPM: | 35.40Nm |
| Rated Rotation Speed: | 4300rpm |
| Peak Efficiency: | 97.8% |
| Range of Efficiency (≥80): | 1.4Nm - 21.5Nm |
| CERTIFICATES | |
| Road Legal: | No |
| TRANSMISSION | |
| Gear Ratio: | 1:7.6 |
| Transmission: | Primary Belt & 420 Drive Chain |
| Belt Brand & Model: | German Continental Brand, 8M CXA |
| ELECTRICAL COMPONENTS | |
| Horn: | European Standard Horn |
| Battery: | 60V 40A Lithium Battery with 176 Panasonic Cells |
| Battery Life Time: | 500 Cycles (and then the capacity reduces step by step) |
| Battery Charge Level: | Integrated Battery LCD Display |
| Charger: | 10A |
| Charging Time: | 2.5-3.5 Hours |
| USB Connection: | USB-2.1 A Single Socket |
| Speedometer: | LCD Digital Speedometer |
| LED Headlight & Rear Light: | Yes |
| CRATE DATA | |
| Crate Dimension: | 1650mm x 850mm x 310mm |
| Gross Weight: | 70kg |
| To Assemble from Crate: | Handlebars, foot rests & insert front wheel |
| WARRANTY | |
| Battery / Chassis / Swing Arm: | 18 Months (or up to 20,000 miles on Battery which ever sooner) Please be aware that any work on the high voltage systems MUST be carried out by a qualified dealer carrying hybrid electric vehicle certification. |
| Other Components: | 12 Months, excluding service items and subject to servicing NB Warranty work is carried out free of charge subject to proof of correct service history.Surron warranty is a return to dealer cover and does not include transportation costs. We can arrange collection and delivery, but the cost must be paid by the owner, prices available upon request. |
| VEHICLE | |
| Chassis - Swing Arm Material: | No. 6061 T4 & T6 Aluminium Alloy |
| Chassis Construction Method: | Forged by 6000 Tons of Pressure |
| Chassis Surface & Colour Processing: | Anodic Oxidation |
| Front Suspension: | DNM, RST or Fastace |
| Rear Shock Absorber: | Adj DNM, RST or Fastace Shock with TR Suspension Link System |
| Wheel Type & Size: | Spoke Wheels, Front/Rear 19 x 1.4 Alloy Hubs |
| Tire Size: | Front/Rear 70/100-19 CST |
| Max Range: | 60 Miles @ 20 MPH average speed depending upon terrain |
| Net Weight: | 47kg plus battery |
| Max Load: | 100kg (15.75 Stone) |
| Max Climb: | 45° |
| Rear Sprocket: | 48T |
| Side Stand: | Yes with kill switch |
| Vehicle Dimensions: | 1870mm x 780mm x 1040mm |
| Min. Ground Clearance: | 270mm |
| Wheelbase: | 1260mm |
| Seat Height: | 84 to 88cm |
